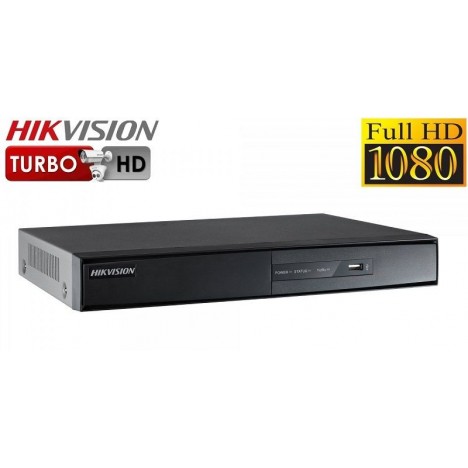

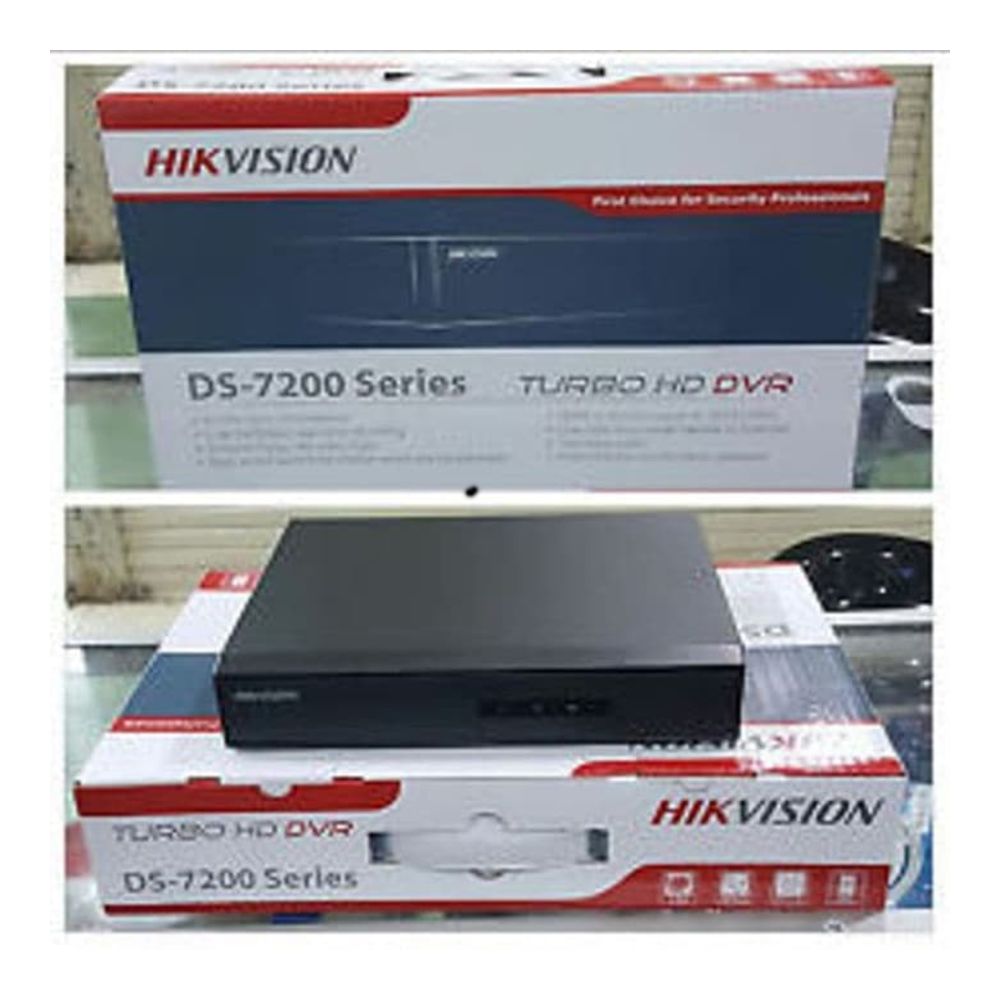

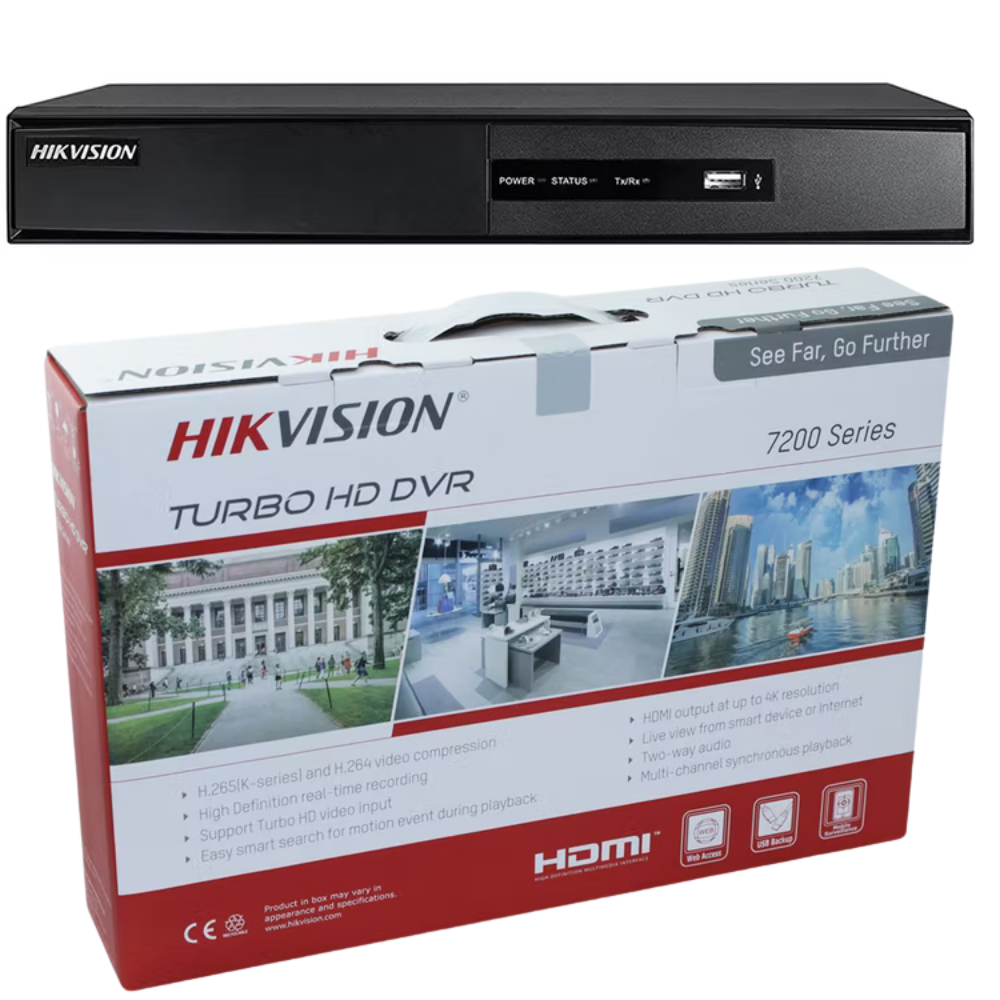

HIKVISION DS 7200 SERIES 4CH 2MP DVR
TEK PRO
Afficher Plus
262
TND
Couleurs disponibles :
Reference
S19168-6P7315
Categorie
Caméras de surveillance
Etat
NEUF
t
Classification des cibles humaines et véhicules basée sur l'apprentissage profond de Motion Détection 2.0
Compression vidéo H.265 Pro+/H.265 Pro/H.265
Entrée vidéo HDTVI/AHD/CVI/CVBS/IP
Audio par câble coaxial
Entrées de caméra IP jusqu'à 5 canaux (jusqu'à 2 MP)
Capacité d'encodage jusqu'à 1080p Lite@15 ips
Max. 1200 m pour le signal HDTVI 720p
- Motion Detection 2.0
- Human/Vehicle Analysis
- Deep learning-based motion detection 2.0 is enabled by default for all analog channels, it can classify human and vehicle, and extremely reduce false alarms caused by objects like leaves and lights;
- Quick search by object or event type is supported;
- Recording
- Video Compression
- H.265 Pro+/H.265 Pro/H.265/H.264+/H.264
- Encoding Resolution
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF
- For SD stream access: WD1/4CIF/VGA/CIF
- Frame Rate
- Main stream:
- For 1080p stream access: 1080p Lite/720p Lite/WD1/4CIF/VGA/CIF@25 fps(P)/30 fps (N)
- For 720p stream access: 720p/WD1/4CIF/VGA/CIF@ 25fps (P)/30 fps (N)
- For SD stream access: WD1/4CIF/VGA/CIF@25 fps (P)/30 fps (N)
- Sub-stream:
- 4CIF@15fps; CIF/QVGA@25 fps (P)/30 fps (N)
- Video Bitrate
- 32 Kbps to 4 Mbps
- Stream Type
- Video, Video & Audio
- Audio Compression
- G.711u
- Audio Bitrate
- 64 Kbps
- Video And Audio
- IP Video Input
- 1-ch (up to 5-ch)
- Up to 1080p resolution
- Support H.265+/H.265/H.264+/H.264 IP cameras
- Analog Video Input
- 4-ch
- BNC interface (1.0 Vp-p, 75 Ω), supporting coaxitron connection
- HDMI Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- VGA Output
- 1-ch, 1920 × 1080/60Hz, 1280 × 1024/60Hz, 1280 × 720/60Hz
- CVBS Input
- Support
- HDTVI Input
- 1080p25, 1080p30, 720p25, 720p30
- Synchronous Playback
- 4-ch
- AHD Input
- 1080p25, 1080p30, 720p25, 720p30
- HDCVI Input
- 1080p25, 1080p30, 720p25, 720p30
- Video Output Mode
- HDMI/VGA simultaneous output
- Audio Output
- 1-ch, RCA (Linear, 1 KΩ)
- Audio Input
- 1-ch RCA (2.0 Vp-p, 1 KΩ)
- 4-ch via coaxial cable
- Two-Way Audio
- Reuse the first audio input
- Network
- Total Bandwidth
- 64 Mbps
- Network Protocol
- TCP/IP, PPPoE, DHCP, Hik-Connect, DNS, DDNS, NTP, SADP, SMTP, NFS, iSCSI, UPnP™, HTTPS
- Remote Connection
- 32
- Network Interface
- 1, RJ45 10/100 Mbps self-adaptive Ethernet interface
- Auxiliary Interface
- SATA
- 1 SATA interface
- Capacity
- Up to 4 TB capacity for each disk
- USB Interface
- Rear panel: 2 × USB 2.0
- Alarm In/Out
- N/A
- General
- Power Supply
- 12 VDC, 1.5 A
- Consumption
- ≤ 16 W (without HDD)
- Working Temperature
- -10 °C to 55 °C (14 °F to +31 °F)
- Working Humidity
- 10% to 90%
- Dimension (W × D × H)
- 260 × 222 × 45 mm (10.2 × 8.7 × 1.8 inch)
- ≤ 0.8 kg (without HDD, 1.8 lb.)
